Totally transparent

Chance is a fine thing. When Myke Bakker’s mother decided to do a leadlight course when he was a high school student and brought the tools home, she unwittingly set on course a chain of events that would influence the direction of her son’s life.
“I was fascinated by the whole process and started mucking around,” says Myke. “I made my first leadlight when I was 17.”
Fourteen years later, Myke is still intrigued by the many possibilities of working with glass and he’s made a career out of it in the process. He is one of a small team who work at Sauvarins Coloured Glass Studio in Auckland’s Penrose specialising in all things glass.

A SPECIALIST AUCKLAND GLASS STUDIO HAS THE KEY TO LEARNING THE SKILLS TO MAKE LEADLIGHTS
By Sarah Beresford
Photographs Joanna Wickham


Myke Bakker at work at Sauvarins Coloured Glass Studio.

Chance is a fine thing. When Myke Bakker’s mother decided to do a leadlight course when he was a high school student and brought the tools home, she unwittingly set on course a chain of events that would influence the direction of her son’s life.
“I was fascinated by the whole process and started mucking around,” says Myke. “I made my first leadlight when I was 17.”
Fourteen years later, Myke is still intrigued by the many possibilities of working with glass and he’s made a career out of it in the process. He is one of a small team who work at Sauvarins Coloured Glass Studio in Auckland’s Penrose specialising in all things glass.
The studio has glass stacked in storage cabinets, old glass windows lean against the walls and wide work benches accommodate all the work in process, from restoring heritage leadlights through to new commissions.
Upstairs in the showroom, a rainbow of vibrant glass samples signal the huge variety in colour, finish, texture and style of glass available, from modern swirls of bright colour through to the more subdued modern replicas of vintage-style glass. Then there’s the etched, silvered, antiqued and fused examples…there seems to be no limit to the effects that can be achieved.
Working with glass in all its forms involves a very precise skill set but there are some principles that are relatively easy to grasp and master.


The design used to cut the glass pieces and assemble the panel.

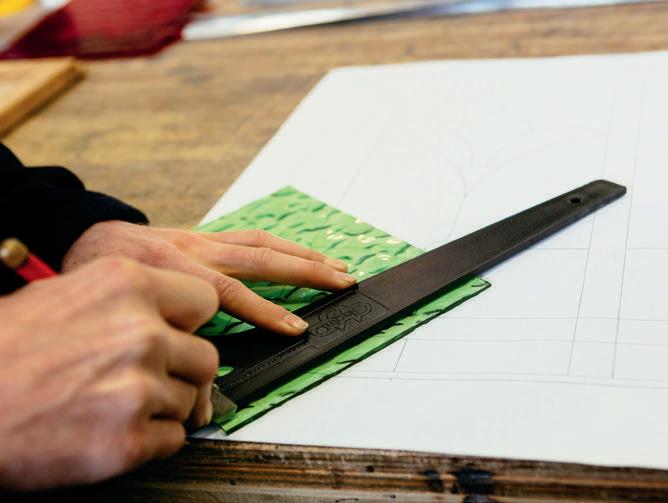

Using the square as a guide to cut the glass.


Tapping the glass along the score line.

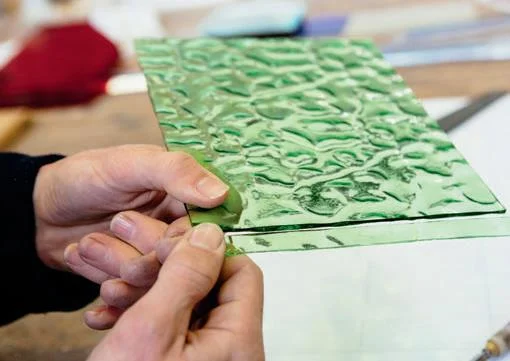

Snapping the glass by hand.

Sauvarins shares their passion for glass during the eight-week courses they run which teach the fundamentals of making a leadlight. The classes are limited to six people and concentrate on making one finished leadlight panel so that at the end of the course students have something to show for their work.
“The workshops incorporate all the elements students need to make a window,” says Myke. “The pattern the students use has been designed by Sauvarins to include square joints, mitres, curves meeting curves and a circle. This provides a really good grounding in the elements that students need to continue with their own designs. To offer individuality of the panels the students select the colour and texture of the glass they are using for their project.
“Some people who attend the classes have worked a bit with glass before but many have not been taught the correct cutting techniques. Just knowing the right way to hold the cutter [like a pen] can make a huge difference.”
Myke takes us through the process of making a leadlight panel using the same design that is used in the workshops.
The first step in making a leadlight panel is to draw up your design. This will be used as a guide for cutting and assembling the leadlight. The main consideration when cutting the glass is to allow for the heart of the lead came that holds the glass pieces in place.

“The lines of your design are a representation of the heart of the lead, which is 1 mm across,” Myke explains. “The cutter blade goes 0.5 mm either side of the line to allow for the total 1 mm of lead.”
Myke uses a square with a lip on the edge to hold the glass in place which he uses as a guide to ensure all the straight lines are true. He places it slightly shy of the line to allow for the heart of the lead. He emphasises that when cutting glass, you need to use a full arm motion


Allowing for the lead came “heart”.

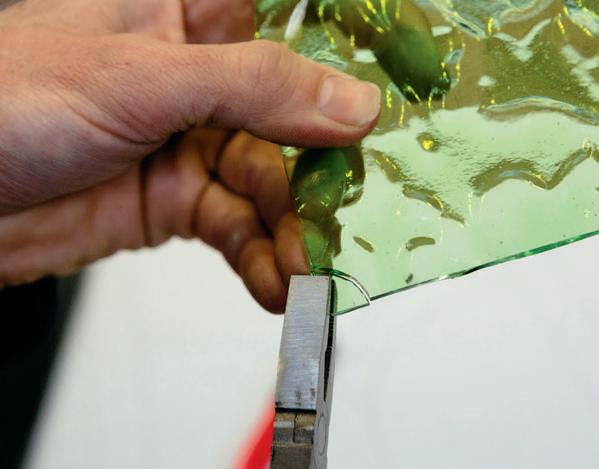

Using the grozier pliers to snap part of a circle.

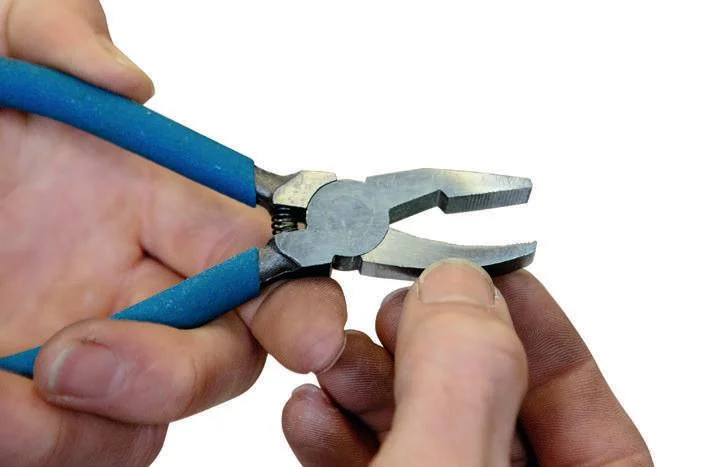

Grozier pliers.

Be Careful
It’s important to be aware that you are handling very sharp materials that can cause grief. “We all know that glass is sharp so you try to handle it accordingly but other things you are handling can cut you, including lead, so you need to be cautious,” warns Myke. “Cleaning up is often the worst for accidents as there can be very fine shards of glass on the work surface.”
Also it is important that you are a stickler for hygiene after handling the lead—staff at Sauvarins are vigilant about washing their hands thoroughly before entering the lunch room or leaving the work studio.

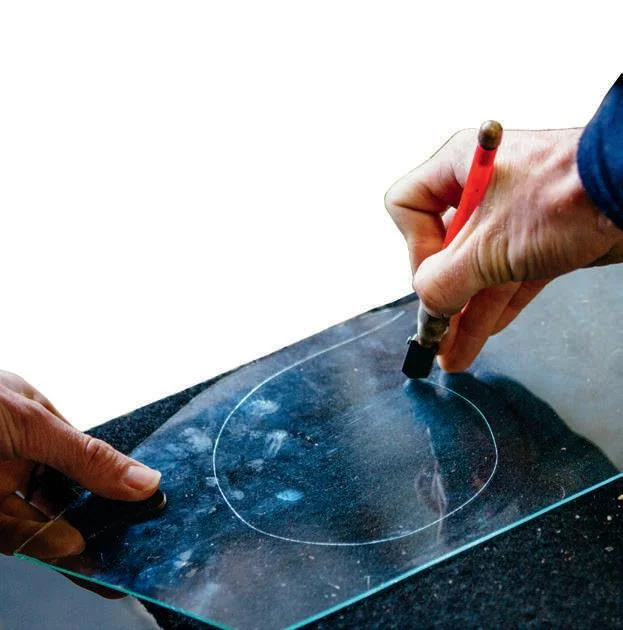

Starting to cut a circle freehand.


The circle cut and ready for finishing.

Cutting action
“You need to sweep the cutter forward using your elbow. When you are cutting curves you need to move around the piece of glass. It’s not a static process.”
It’s important when cutting glass to realise you are just scoring the surface. “You don’t actually cut glass,” Myke explains. “By scoring the surface with the cutter you are influencing where it breaks. Good hand-to-eye coordination is crucial and the action of cutting needs to be strong and steady.”
Bench height is the key to making the process of cutting glass easier. At the studio, staff work on a low, felt-covered table to cut glass, especially when making trickier cuts such as circles and curves.
The felt top helps to absorb the stress on the glass. “You can get over the top of the glass if you use a lower table. You keep a stiff wrist and lead the cutter with your elbow and shoulder. It’s a full body motion and you should be able to move easily around the corner of the table when you’re cutting curves and circles.”
When starting on the leadlight panel, Myke says it’s best to cut the largest pieces first. “Then if you stuff up any of the bigger pieces, you can cut smaller pieces from the glass.”
Once the glass has been scored most pieces can be broken out by hand. Straight pieces can often be “snapped” with pressure from you fingers, but in many cases—especially when dealing with shapes like circles and curves—special grozing pliers are used to snap off the piece from the score. The ball on top of the glass cutter can also be used to tap on the back of the score to get the break started. Grozier pliers have a flat top jaw and a curved bottom. Normal pliers can’t be used for the job as they crush the edge of the glass.


Cutting a circle using the special jig


Hammering in the laths

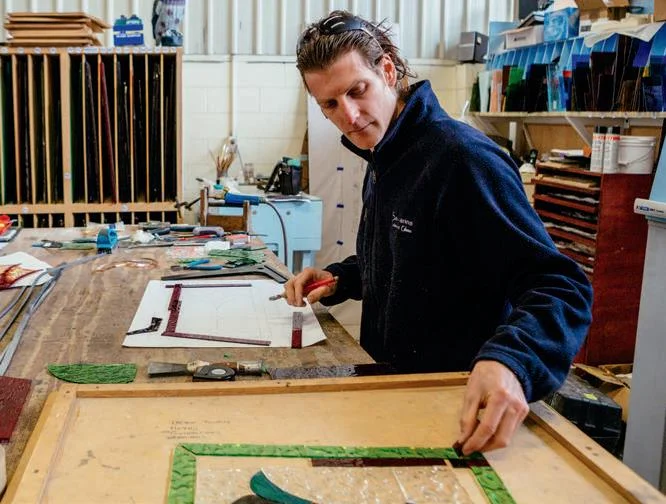

Cutting and laying up the panel.

Curves and circles
Once all the rectangular and square glass pieces of the double border have been cut, Myke moves on to cutting the more tricky feature pieces that form the inside of the panel. These are cut free hand. Although they do have a special jig for cutting circles, Myke says they tend to only use this for bigger jobs as it takes time to set up accurately and it’s faster to do by hand for small jobs such as this.
The cut starts as a straight line and then the curve is scored. Once cut all the way round, relief cuts are made on a tangent. The score is then tapped and the grozier pliers are used to snap off segments of glass leaving the central shape.
Once all the pieces that will form the decorative panel have been cut, the painstaking process of assembling the leadlight begins with cutting to an accurate size the lead sleeves that will hold the glass pieces together.
Before starting on cutting the lead, Myke nails down wooden battens called laths in an “L”-shape. “You build the pattern against the lathe so the wood you use needs to be reasonably thick. You can never trust a pattern is square as it changes shape as you work on it. I use a builder’s square when setting the laths to make sure the angles are true.
“When you’re building a leadlight, you are constantly taking things apart and putting them back together again as you don’t know what length to cut the lead came until you are assembling the panel,” says Myke. “It’s a bit like a jigsaw puzzle that you’re building up as you go.”


Stretching the lead came.

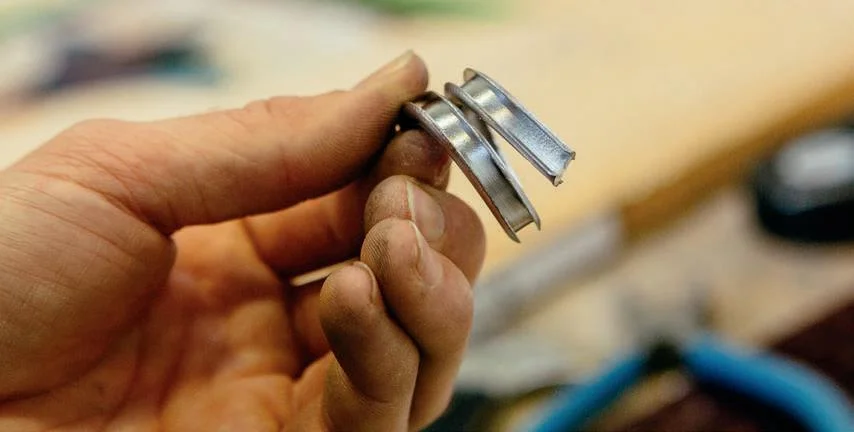

The lead came showing the “heart”.

Stretching lead
Next job is cutting the lead. The lengths of lead come in different gauges. “For this panel, we use 10 mm for the outside panel of the double border, 7 mm for the inside border panel and 6 mm for the detail inside.”
Before cutting the lead it needs to be stretched. “When you take the lead out of the box it is always a bit wonky so we put one end in the lead stretcher, hold the other end with pliers and stretch it till it’s straight.”
At Sauvarins they have a custom-built lead stretcher for the job but Myke says for the hobbyist a sailing rope cleat that you can get from a boat chandlers attached to a wall is just as effective.
The knives they use for cutting the lead consist of a cut-down scraper sharpened to a razor edge with a leaded hammer handle which can be used for gently tapping the pieces home into the lead without smashing the glass.


Cutting the lead on an angle


…then turning it over and making a straight cut.


Using a piece of lead as a marker to cut equal lengths.

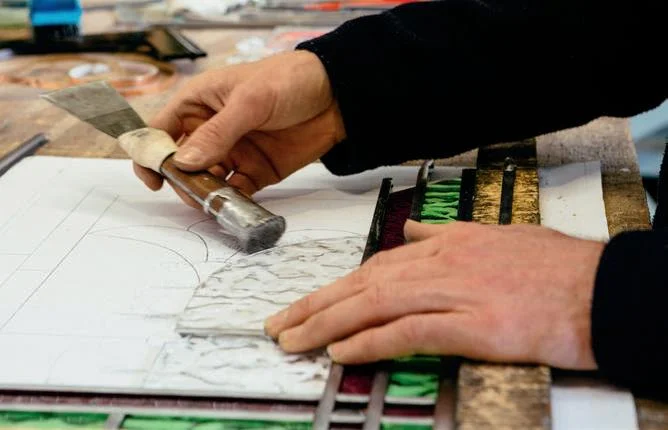

Tapping a glass piece into the lead.

First cut
“The first cut in the lead came is done on an angle, then you turn the lead over and cut straight down to achieve a right angle,” Myke explains. “If you cut it straight through the lead will get bent and mangled.”
Myke starts with cutting the lead for one side of the double border first. As the pieces are regular he cuts one piece to size, then lies the piece on top of the lead and uses it as a guide for marking off the other pieces that need to be cut. Once the glass is all in place this should help to achieve a nice straight border. The end pieces are cut on an angle to allow for the width of lead on a side angle. Myke uses a small piece of lead as a gauge so he knows where to cut.
When all the glass is assembled to the pattern, the lead end of the knife is used to tap it true. As the panel Myke is making gets bigger and he starts to work on the interior detail, he hammers in nails to hold the glass pieces already assembled in shape as he works. “Things will move as the panel gets bigger so I get a small piece of lead and nail the glass in place so I can work on the rest without any movement. When you’re working on big pieces you end up with nails everywhere.”
Lining the curve, circle and central teardrop shapes involves learning techniques for bending the lead round the glass in stages and gauging where to cut it. This entails cutting one side, allowing a bit extra, setting it aside, inserting the curve in the lead border, then curving and cutting the far side to shape. “You end up pulling part of the panel apart and then putting it back together again several times to get this section just right.”
However Myke emphasises that taking time with cutting the lead accurately is vital to achieving a well-finished leadlight: “The more accurate your lead cutting, the tidier the soldering will be. You can cover a lot of sins with soldering but it’s not really a good look.”

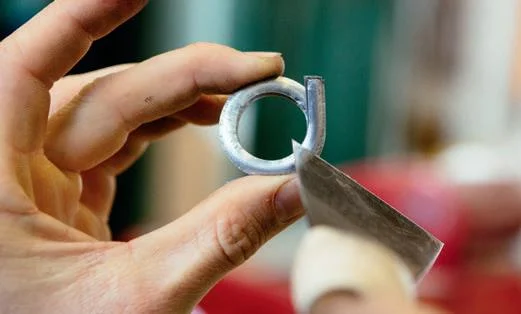

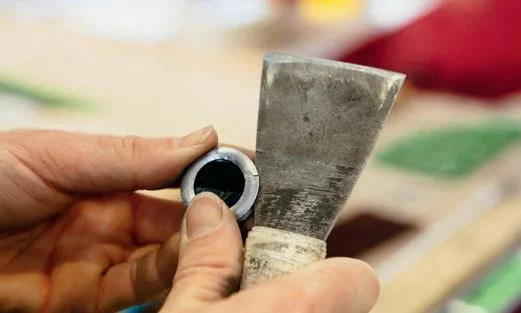

Starting to bend the lead…


…so that it fits…

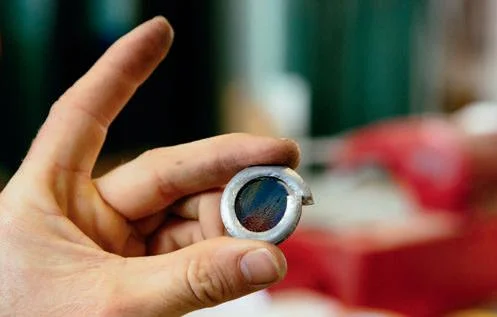

…around a circle.

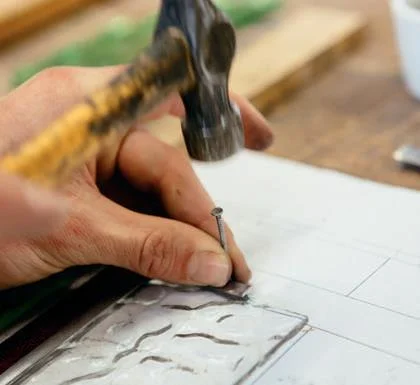

Nailing a piece of lead against a piece of glass to help keep panel pieces in place during assembly.

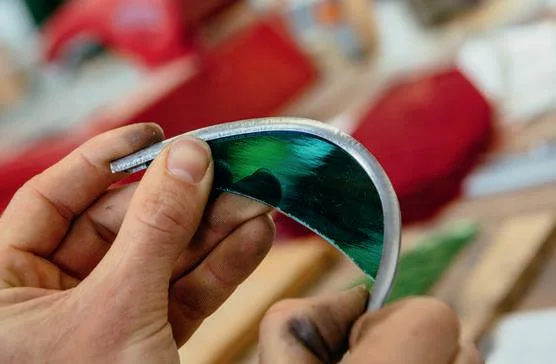

Tackling a curve…


…and fitting it in place.

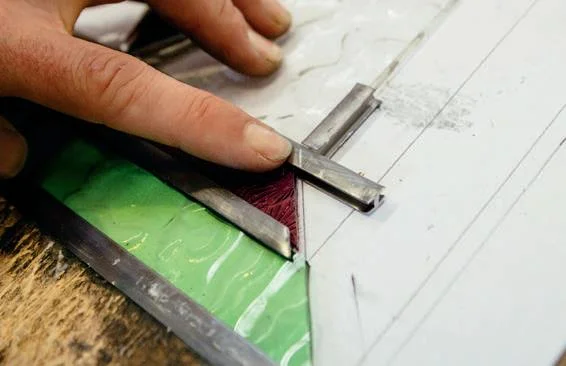

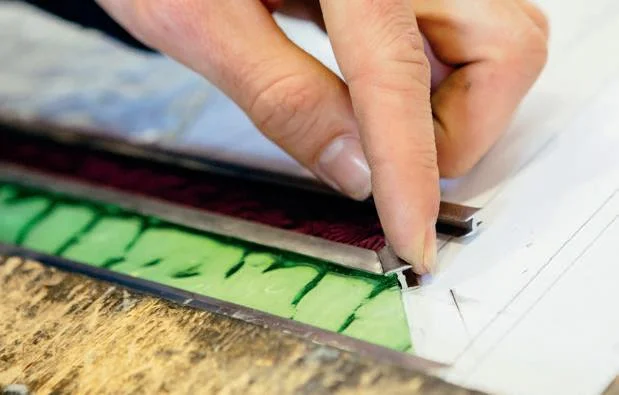

Taking trouble with making corners…


…and allowing for the “heart” of the lead.

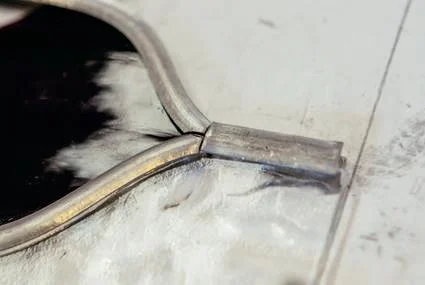

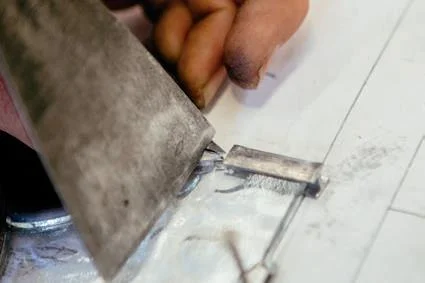

Cutting lead for the join in the central teardrop…


…and join achieved.

Soldering
Once the lead and glass is all held in place to the pattern two more wooden laths are nailed down to hold the whole panel square ready for soldering. The flux used at Sauvarins is Steraine (solid rendered animal fat) and is applied on every joint and anywhere you want the solder to flow. Myke smushes the flux with his finger to make sure the area is thoroughly covered. Sauvarins use gas soldering irons but Myke says cheaper electric soldering irons are perfectly adequate for hobbyists. The process is to just wipe off a bit of solder onto the iron, place it straight down onto the joint and, once the solder has flowed over the joint, lift the iron tip straight up.
“Soldering the lead is tricky and you need to get a feel for the heat of the iron. The solder used with 80 or 100 watt electrical irons is 60/40 lead and tin. It’s a fine line applying the solder so that it won’t melt through the lead came as the solder and the lead have a similar melting temperature. It is better not to put too much solder on than too little. If you put too much on the iron you have to flick it off in bits.”
Once all the soldering has been done on the first side, the lathes can be removed and the panel is turned over and the other side is soldered. All that’s left is the cementing and polishing… most students leave this mucky process to the team at Sauvarins to complete for them. Leadlight cement is pushed between the lead came and the glass on both sides using a stiff bristle brush. After each side is cemented whiting powder is sprinkled over the panel and is left to dry for a few hours and then the excess cement is scrubbed off. After about 24 hours the lead came on both sides are polished with Neil’s Black Stove Polish.
Then—voila—a finished leadlight panel and the foundations of an understanding of the art of making leadlights.

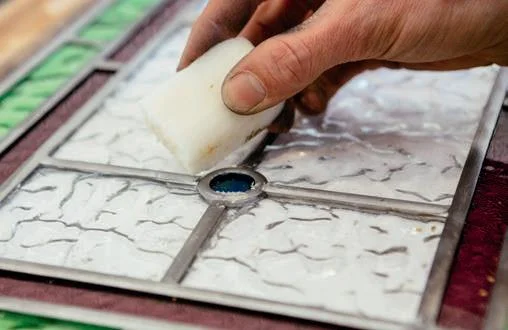

Putting on the flux.


Soldering the joins.


Myke with the completed leadlight panel.

All things glass
Sauvarins imports glass directly from America, receiving shipments every few months. There are two main brands of glass that each have very distinct qualities.
“The Spectrum range is characterised by bright, almost lolly-like colours,” Myke explains. “The Wissmach range has more subtle colours that are suited for matching with the kinds of old glass found in villas. It’s harder to work with and can be quite unpredictable.
“We hoard as much old glass as we can find. Sometimes people come and give it to us. Sometimes we get glass from demolition yards but they generally want us to buy the whole frame, which is of no use to us, so it’s often not a very cost-effective source.
“The old glass is like gold to us as when it comes to restoring old leadlights there is no modern equivalent to some of the old glass.”
Myke set himself a bit of a challenge recently when he decided to make a textured mould to replicate the vintage patterned glass known as “Imperial”. “It features tudor rose, thistle, leek and shamrock forms. I made a mould from plaster of Paris and silicone. I had a few failures along the way. On one attempt gas was released from the mould material which caused large bubbles in the glass. It’s extremely difficult to take a mould off glass. It took me around eight tries at it. Eventually I’d like to make a mould big enough to take the largest sheets of glass.” The company recently expanded to include a custom silvering business. As well as “mirroring” anything made of glass, the process can be used to create special effects.
“When coloured glass is silvered it becomes iridescent. Things have to be kept fastidiously keen on every step of the process. It’s really effective on mosaics and things like splashbacks.” An “antiquing” look is achieved by interrupting the silvering process to produce the mottled, aged effect that distinguishes real antique mirrors. Fused glass is another aspect of glass that Sauvarins runs classes on. Myke points out a distinctive little banana-shaped platter that looks as if it may be made from a material like porcelain rather than glass: “It’s made from sheet glass with stringers fused into it to create the pattern. The glass is slumped into a mould to bend it,” he explains. Always keen to experiment with new techniques, Myke’s current challenge is trying to create authentic-looking dragon’s wings for a special project out of cut glass pieces that are fused in a kiln. “The cut glass pieces, or frit, are dusted over the kiln shelf and when heated the glass draws apart and fuses organically.” The frit form a solid but porous body, a little like delicate lace. The trick is to ensure the “holes” don’t get too big so the wing retains its structure and form.
Top temperatures used in kilns is 800°C—this varies between kilns. The surface of glass starts melting at 650°C. When glass goes from a plastic to a solid state stress builds up. The new glass shape then needs to be annealed at around 430-510°C. The firing process needs to be slow and steady and the average kiln cycle is around 36 hours. “You get a better outcome if it’s done slowly,” says Myke. “All the heating and cooling occurs inside the kiln. Glass blowing is referred to as hot glass and kiln forming as warm glass.”
